We use Hawk, Annovi Reverberi and Speck Pumps depending on customers application. We select the best available model depending on the customers type of cleaning requirements i.e. cleaning speed & times, water volume, various pressures, pump crankshaft speeds and gearbox driven options etc.
We can supply working pressures of 3000 - 5000 psi.
We can supply water volumes from 21, 30 & 41 litres per minute.
We can supply machines with Zero-Pressure or Trapped-Pressure Bypass
We can supply gearbox drive machines for 540 PTO box speed tractors only.
Either burst disc or safety valve system.
INLET & BYPASS HOSES
Long life, yellow water inlet and braided bypass return hose.
INLET TWIN WATER FILTER SYSTEM
Filter 1: Element damage-proof 80 micron filter
Filter 2: Pump brass y-strainer filter
HIGH PRESSURE HOSE
Both gun hoses must be heavy duty and we can supply any lengths up to 250ft. Common lengths are 120ft, 150 and 250ft
PISTOLS & LANCES
Selected heavy duty pistols and 1 metre, one-piece, stainless steel lances for long life and health & safety reasons. Longer lances can be supplied for high level cleaning including telescopic lances. For extra power we can supply turbo nozzles which can boost your working pressure by a further 1500 psi.

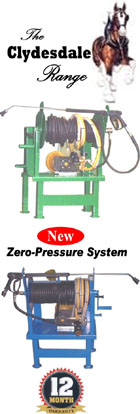

HEAVY DUTY FRAMES
Frames have to be made according to the customers specifications i.e with or without water tank, what size and direction of high pressure hose reels, single or twin pump, choice of various powder coated colours or galvanised, anti drop lance storage facilities, choice of category 1 or 2, 3-Point linkage pins.

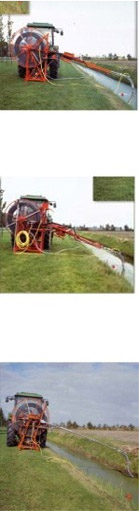

Aquawash also specializes in equipment for cleaning field drains because of the lengths of drains to be cleaned. Aquawash' range of PTO machines can only pull the drain hose between 10 to 23 metres (30 to 70ft) up the drain depending on drain diameter. We can achieve a slightly longer push up the drain by using a pulse jet, but not the lengths the proper field drain machine can achieve. Aquawash Supply equipment which has a rigid HPE hose which is pushed into the drain up to a length of 500 metres (1500ft).
Hydraulic system; 2 hydraulic motors, 1 valve back, 1 pressure compensated valve, 1 flow regulator. Hose guiding, manual adjustable. Hose withdrawal, hydraulic.
Hydraulic system; 2 hydraulic motors, 1 valve back, 1 pressure compensated valve, 1 flow regulator. Hose guiding, hydraulic adjustable. Hose withdrawal, hydraulic.
Hydraulic system; 3 hydraulic motors, 4 cyclinders 1 valve block, 1 pressure compensated valve, 1 flow regulator. Hose guiding, hydraulic adjustable. Hose withdrawal, hydraulic.
Features on all types
5-chamber piston diaphragm pump, max. output 115 ltr./min - 50 bar. Working speed 70 - 80 ltr./min - 35 bar, 300 metre standard length cleaning hose, 10 metre suction hose with filter & float, 10 meter return-flow hose, distance counter, Required tractor hydraulics; single-acting system with free return line or double acting system.
